Types of Communication Systems in Instrumentation and Control Engineering
Introduction
Communication systems in Instrumentation and Control (I&C) Engineering are used to transfer process data between field instruments, controllers, PLCs, DCS systems, SCADA platforms, and actuators. These communication systems enable real-time monitoring, control, diagnostics, and automation of industrial processes.
Modern industries such as power plants, oil and gas facilities, chemical plants, water treatment plants, and manufacturing industries rely heavily on communication networks to ensure safe, reliable, and efficient operations. The main types of communication systems used in I&C Engineering include analog communication, digital communication, serial communication, fieldbus communication, industrial Ethernet, wireless communication, SCADA and telemetry communication, fiber-optic communication, substation communication, and safety communication systems.
What is a Communication System in I&C Engineering?
A communication system is a method used to transfer information between industrial devices such as sensors, transmitters, PLCs, DCS controllers, operator workstations, and enterprise systems.
The primary objective of industrial communication is to ensure that process data is transmitted accurately, reliably, and securely throughout the automation hierarchy.
Why Communication Systems are Important
Industrial communication systems provide several advantages:
- Real-time monitoring and control
- Improved process reliability
- Faster fault detection and diagnostics
- Reduced wiring costs
- Easy integration of intelligent devices
- Remote monitoring and asset management
- Increased operational efficiency
- Better plant safety and availability
Without effective communication networks, modern automation systems cannot operate efficiently.

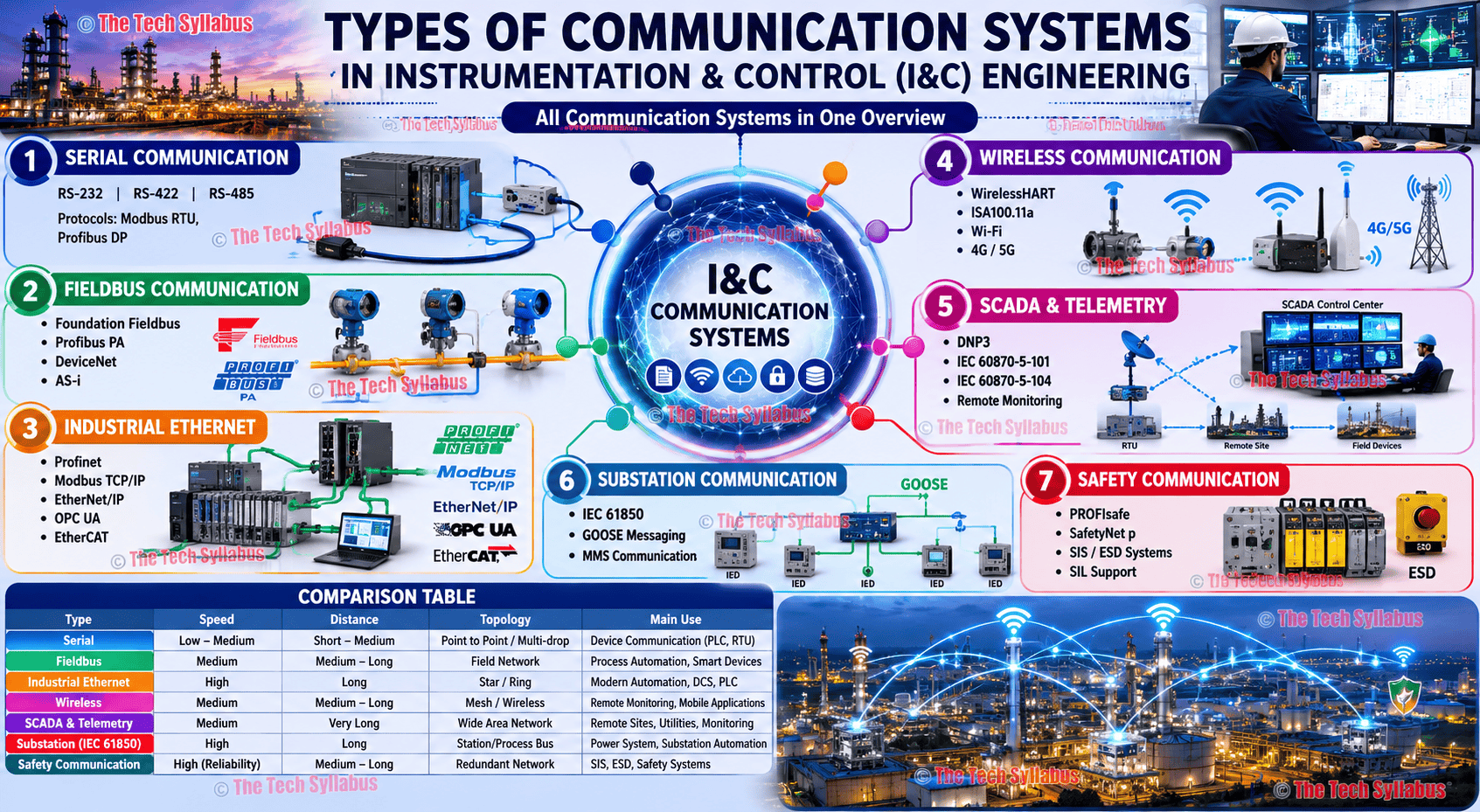

Main Types of Communication Systems in Instrumentation and Control Engineering
1. Analog Communication Systems
Analog communication is one of the oldest methods used in industrial instrumentation.
Common Signals
- 4–20 mA Current Loop
- 0–10 V DC Signal
- Pneumatic Signals (3–15 psi)
Applications
- Pressure transmitters
- Temperature transmitters
- Flow transmitters
- Level measurement systems
Advantages
- Simple implementation
- Reliable for basic process control
- Widely used in existing plants
Limitations
- Limited diagnostics
- Signal degradation over long distances
- Limited information transfer capability
2. Digital Communication Systems
Digital communication transmits information in binary form and supports intelligent devices.
Advantages
- High accuracy
- Better noise immunity
- Advanced diagnostics
- Remote configuration capability
Applications
- Smart transmitters
- Intelligent valve positioners
- Digital analyzers
- Modern control systems
3. Serial Communication Systems
Serial communication transfers data one bit at a time between devices.
Common Standards
- RS-232
- RS-422
- RS-485
Common Protocols
- Modbus RTU
- Profibus DP
- Profibus PA
Applications
- PLC communication
- Remote I/O systems
- RTUs
- Motor control systems
4. Fieldbus Communication Systems
Fieldbus technology allows multiple field devices to communicate through a single network cable.
Common Technologies
- HART Communication
- Foundation Fieldbus
- Profibus PA
- DeviceNet
- AS-Interface (AS-i)
Advantages
- Reduced cabling
- Enhanced diagnostics
- Lower installation costs
- Device interoperability
Applications
- Process automation
- Smart instrumentation
- Distributed control systems
5. Industrial Ethernet Communication Systems
Industrial Ethernet is currently the most widely used communication technology in industrial automation.
Common Protocols
- Profinet
- Modbus TCP/IP
- EtherNet/IP
- EtherCAT
- OPC UA
Advantages
- High-speed communication
- Excellent scalability
- Easy system integration
- Industrial IoT compatibility
Applications
- PLC Networks
- DCS Systems
- SCADA Systems
- Manufacturing Automation
6. Wireless Communication Systems
Wireless communication eliminates the need for extensive cabling and provides flexibility in remote applications.
Common Technologies
- WirelessHART
- ISA100.11a
- Wi-Fi
- Cellular Networks (4G/5G)
Applications
- Remote monitoring
- Asset tracking
- Temporary installations
- Difficult-to-access areas
7. SCADA and Telemetry Communication Systems
SCADA and telemetry systems enable centralized monitoring and control of geographically distributed assets.
Common Protocols
- DNP3
- IEC 60870-5-101
- IEC 60870-5-104
Applications
- Power distribution systems
- Water treatment facilities
- Pipeline monitoring
- Remote substations
8. Fiber Optic Communication Systems
Fiber-optic communication uses light signals for high-speed and long-distance data transmission.
Advantages
- Extremely high bandwidth
- Long-distance communication
- Immunity to electromagnetic interference (EMI)
- High reliability
Applications
- Power plants
- Substations
- Offshore facilities
- Industrial backbone networks
9. Substation Communication Systems
Modern substations rely on advanced digital communication technologies.
Common Protocols
- IEC 61850
- GOOSE Messaging
- MMS Communication
Benefits
- Faster protection schemes
- Reduced copper wiring
- Improved interoperability
- Simplified engineering
10. Safety Communication Systems
Safety communication networks are designed for Safety Instrumented Systems (SIS) and Emergency Shutdown Systems (ESD).
Common Protocols
- PROFIsafe
- SafetyNet p
- CIP Safety
Applications
- Emergency shutdown systems
- Burner management systems
- Machine safety systems
Common Industrial Communication Protocols
The most widely used communication protocols in industrial automation include:
| Protocol | Typical Application |
|---|---|
| HART | Smart Field Instruments |
| Modbus RTU | Serial Device Communication |
| Modbus TCP | Ethernet Communication |
| Profibus DP | Factory Automation |
| Profibus PA | Process Automation |
| Foundation Fieldbus | Process Industries |
| Profinet | Industrial Ethernet |
| EtherNet/IP | Manufacturing Systems |
| OPC UA | Data Integration |
| IEC 61850 | Substation Automation |
Comparison Table
| Communication Type | Speed | Distance | Typical Application |
| Analog | Low | Medium | Conventional Instrumentation |
| Digital | Medium | Medium | Smart Devices |
| Serial | Medium | Long | PLC Communication |
| Fieldbus | Medium | Medium | Process Automation |
| Industrial Ethernet | High | Long | Modern Automation Systems |
| Wireless | Medium | Medium-Long | Remote Monitoring |
| Fiber Optic | Very High | Very Long | Industrial Backbone Networks |
| SCADA & Telemetry | Medium | Very Long | Remote Operations |
| Substation Communication | High | Long | Power Systems |
| Safety Communication | High Reliability | Medium | SIS & ESD Systems |
How to Choose the Right Communication System
When selecting a communication system, engineers should consider:
- Communication distance
- Data transmission speed
- Reliability requirements
- Noise immunity
- System compatibility
- Safety requirements
- Installation cost
- Maintenance requirements
- Future expansion capability
Frequently Asked Questions (FAQs)
What are the main types of communication systems in instrumentation?
The main types are analog, digital, serial, fieldbus, industrial Ethernet, wireless, SCADA and telemetry, fiber-optic, substation, and safety communication systems.
Which communication protocol is most commonly used in industrial automation?
Modbus, Profinet, Profibus, HART, Foundation Fieldbus, and OPC UA are among the most widely used industrial communication protocols.
Why is RS-485 widely used in industry?
RS-485 supports long communication distances, excellent noise immunity, and multi-device communication, making it suitable for industrial environments.
What is the difference between HART and Foundation Fieldbus?
HART combines digital communication with a 4–20 mA analog signal, while Foundation Fieldbus is a fully digital communication system.
